LIBERTY FLAGS, The American Wave®
Trucks - Ball Style for Internal Rope
Trucks - Ball Style for Internal Rope
SKU:PH3TB
Regular price
$538.00
Regular price
Sale price
$538.00
Unit price
/
per
Couldn't load pickup availability
Suitable for ground mount internal halyard (rope on inside) flagpoles.

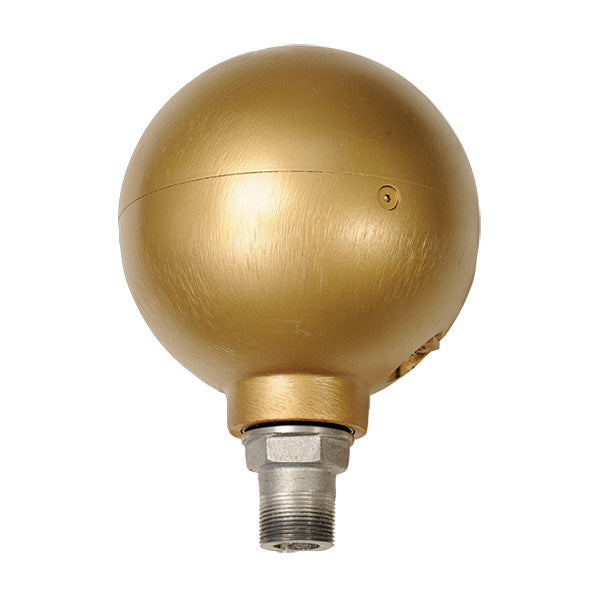

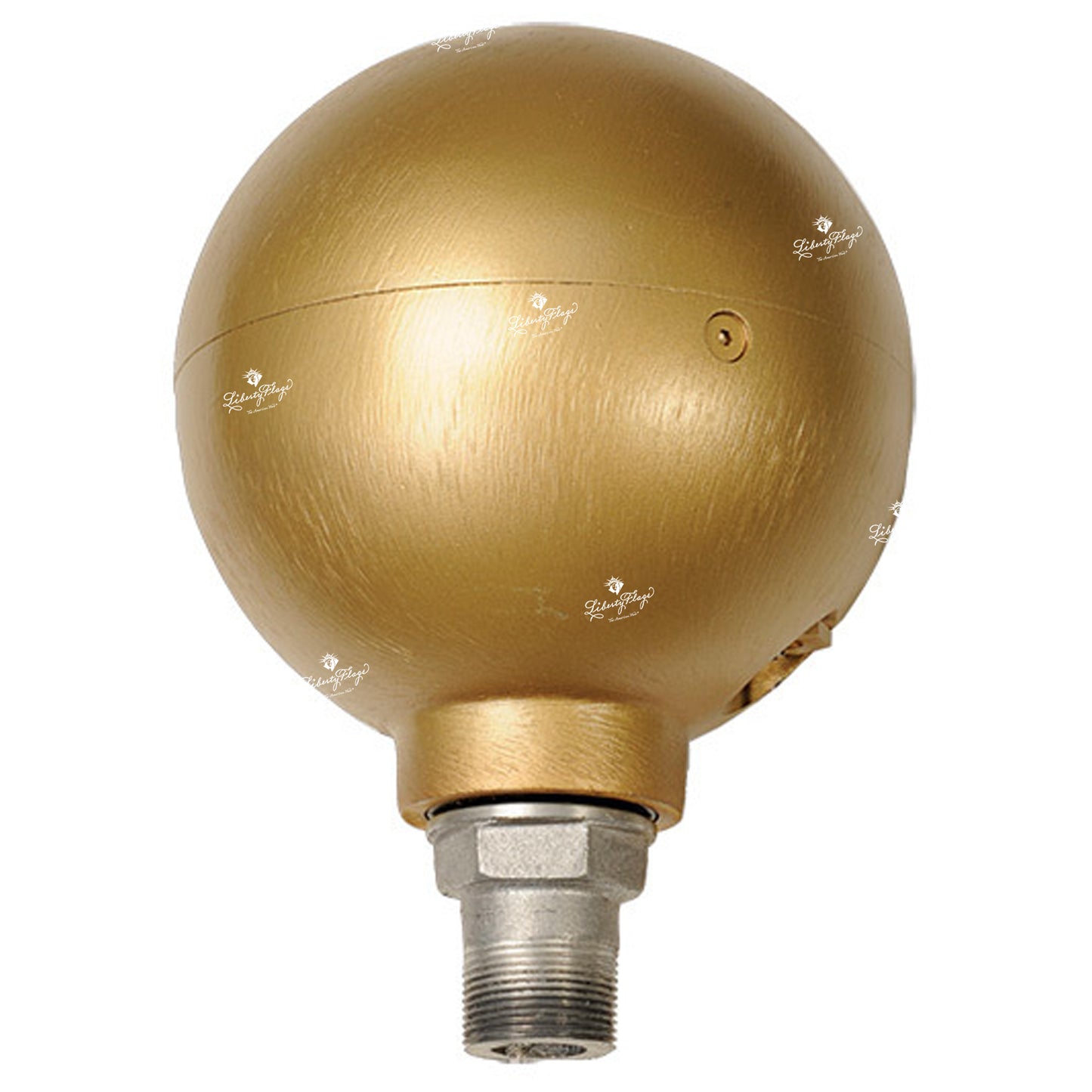

Flagpole Trucks - Ball Truck for Internal Rope Pole
The flagpole ball truck is a component part at the top of the flagpole and serves 3 purposes:
- Houses the pulley through which the halyard (rope) passes through to raise and lower the flags
- Combination ball/truck eliminates the need for a separate finial (ornament)
- Keeps the weather elements out of the flagpole
Features
- Heavy cast aluminum
- 8" dia., use with maximum top shaft OD 3-1/2"
- Upper and lower stainless steel sealed lubricant bearings on cast aluminum spindle
- Brass exit bushing
- Threaded 1-1/4" NPT spindle screws into flagpole with 1-1/4" NPT inner threads
- Halyard limit: 5/16" dia.
- Compatible with internal rope based commercial flagpoles
Special Benefits
- Unique construction combines the function of the truck and ornament into 1 piece
- Revolving ball truck moves with the wind enabling the flag to not wrap around the flagpole
- Built with stainless steel sealed lubricant bearings for optimal performance life
This is a component part only and therefore the design and engineering of the application are the responsibility of the customer.
