Trucks - Ball Style for Internal Cable

  • Sale
  • Regular price


Suitable for outdoor use.

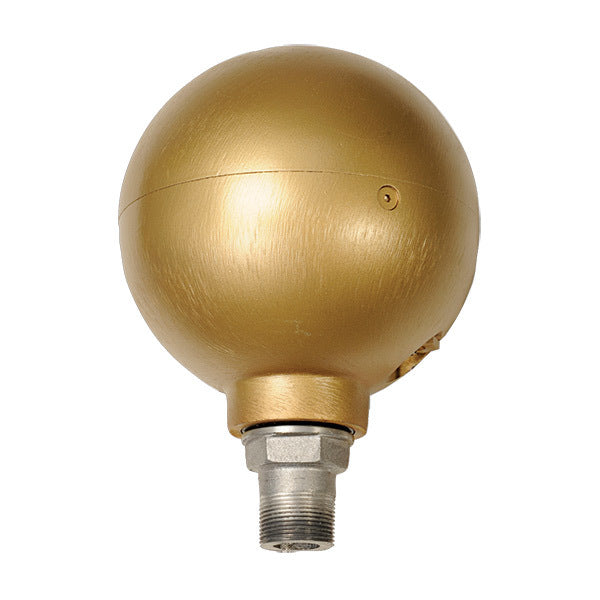

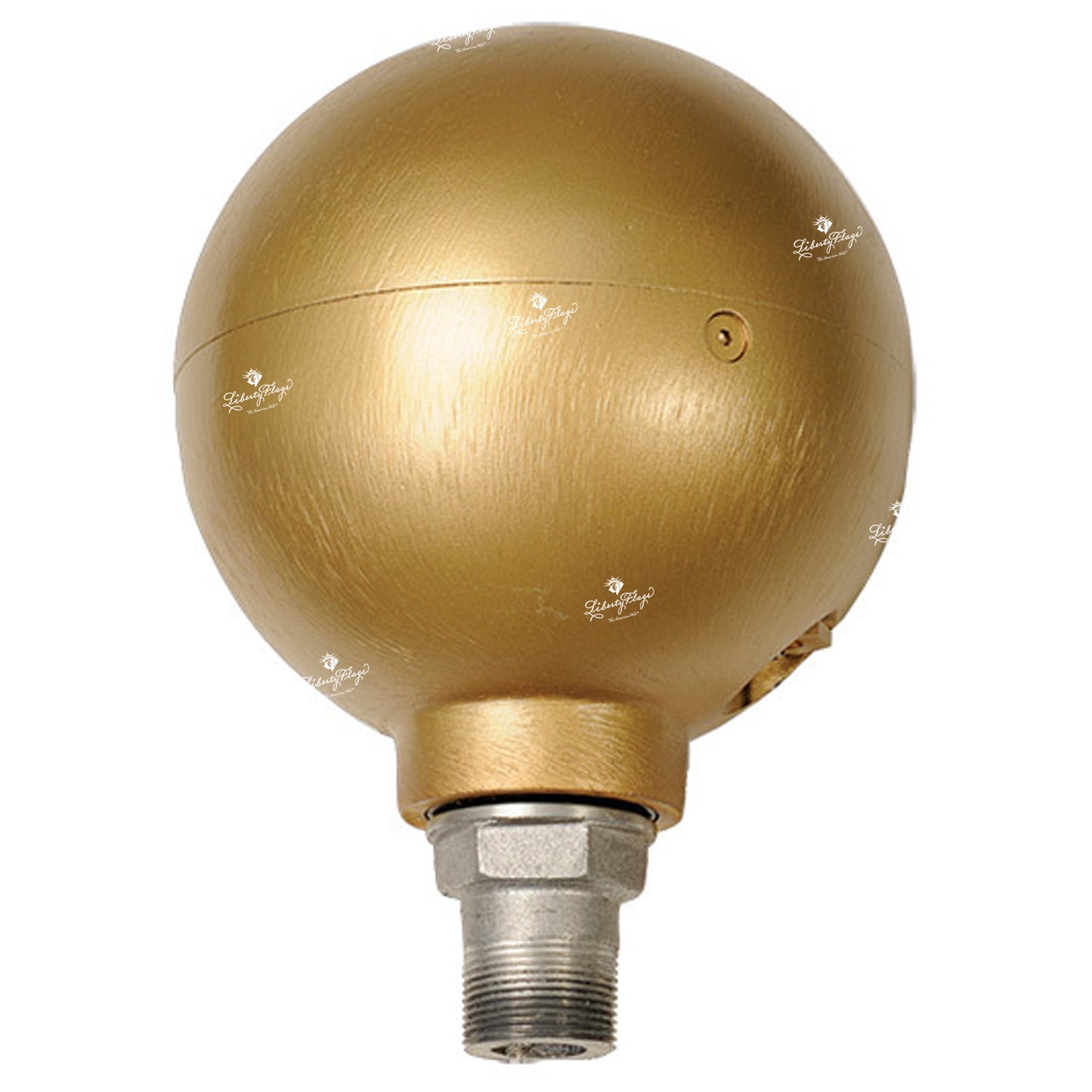

Flagpole Trucks - Ball Truck for Internal Cable Pole

The flagpole ball truck is a component part at the top of the flagpole and serves 3 purposes:

  1. Houses the pulley through which the cable passes through to raise and lower the flags
  2. Combination ball/truck eliminates the need for a separate finial (ornament)
  3. Keeps the weather elements out of the flagpole

Features

  • Heavy cast aluminum
  • 2 sizes
  • 8", use with maximum top shaft OD 3-1/2"
  • 10", use with maximum top shaft OD 4"
  • Upper and lower stainless steel sealed lubricant bearings on cast aluminum spindle
  • Cast, machined bronze cable exit bushing
  • Threaded 1-1/4" NPT spindle screws into flagpole with 1-1/4" NPT inner threads
  • Cable limit: 5/32"
  • Compatible with internal cable based commercial flagpoles

Special Benefits

  • Unique construction combines the function of the truck and ornament into 1 piece
  • Revolving ball truck moves with the wind so the flag won't wrap around the flagpole
  • Built with stainless steel sealed lubricant bearings for optimal performance life

This is a component part only and therefore the design and engineering of the application are the responsibility of the customer.
