Truck - Heavy Duty Spindle Style

Suitable for ground mount external halyard (rope on outside) flagpoles.

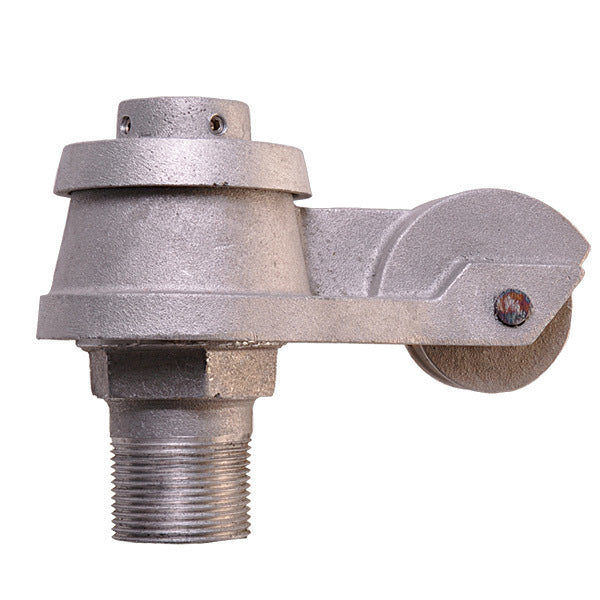

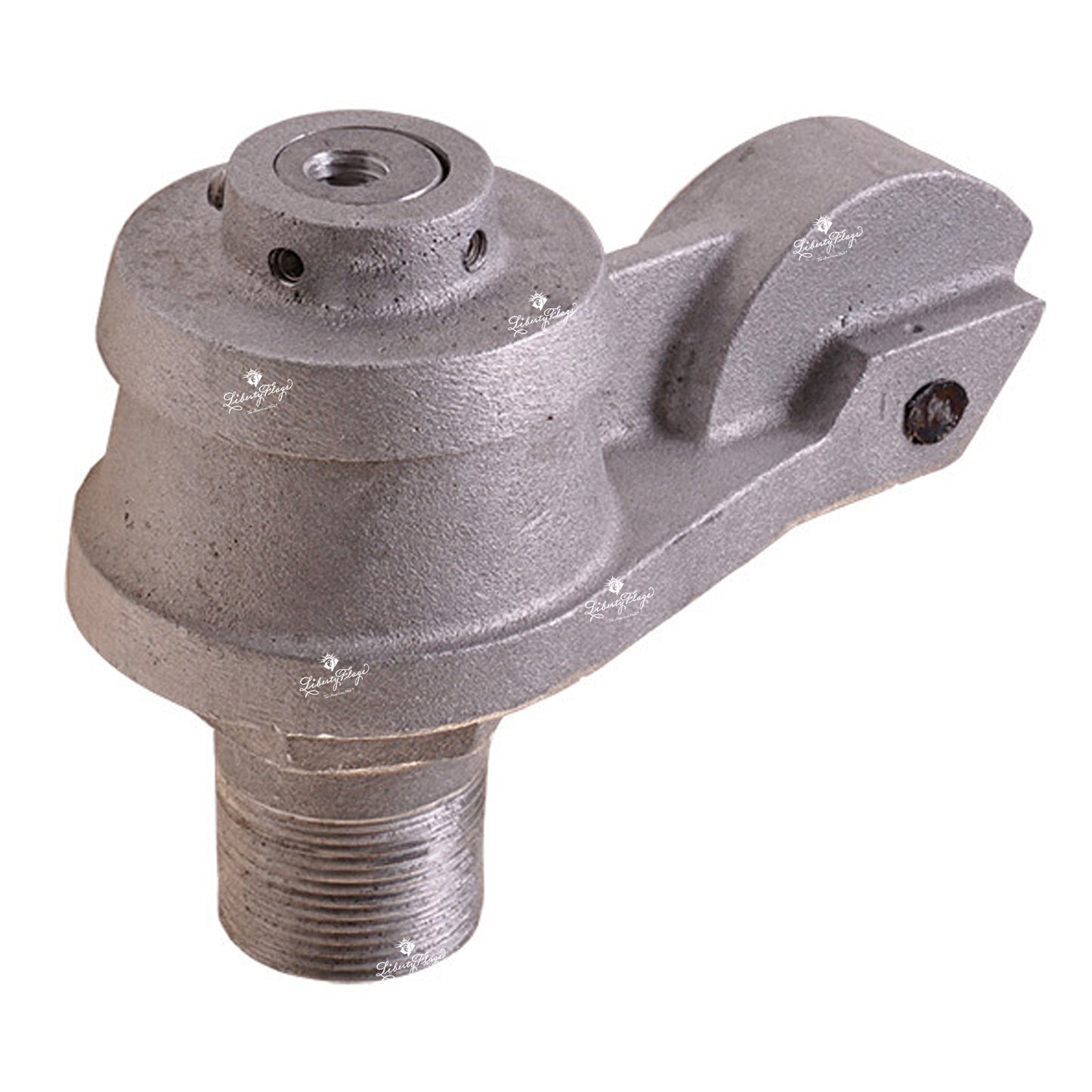

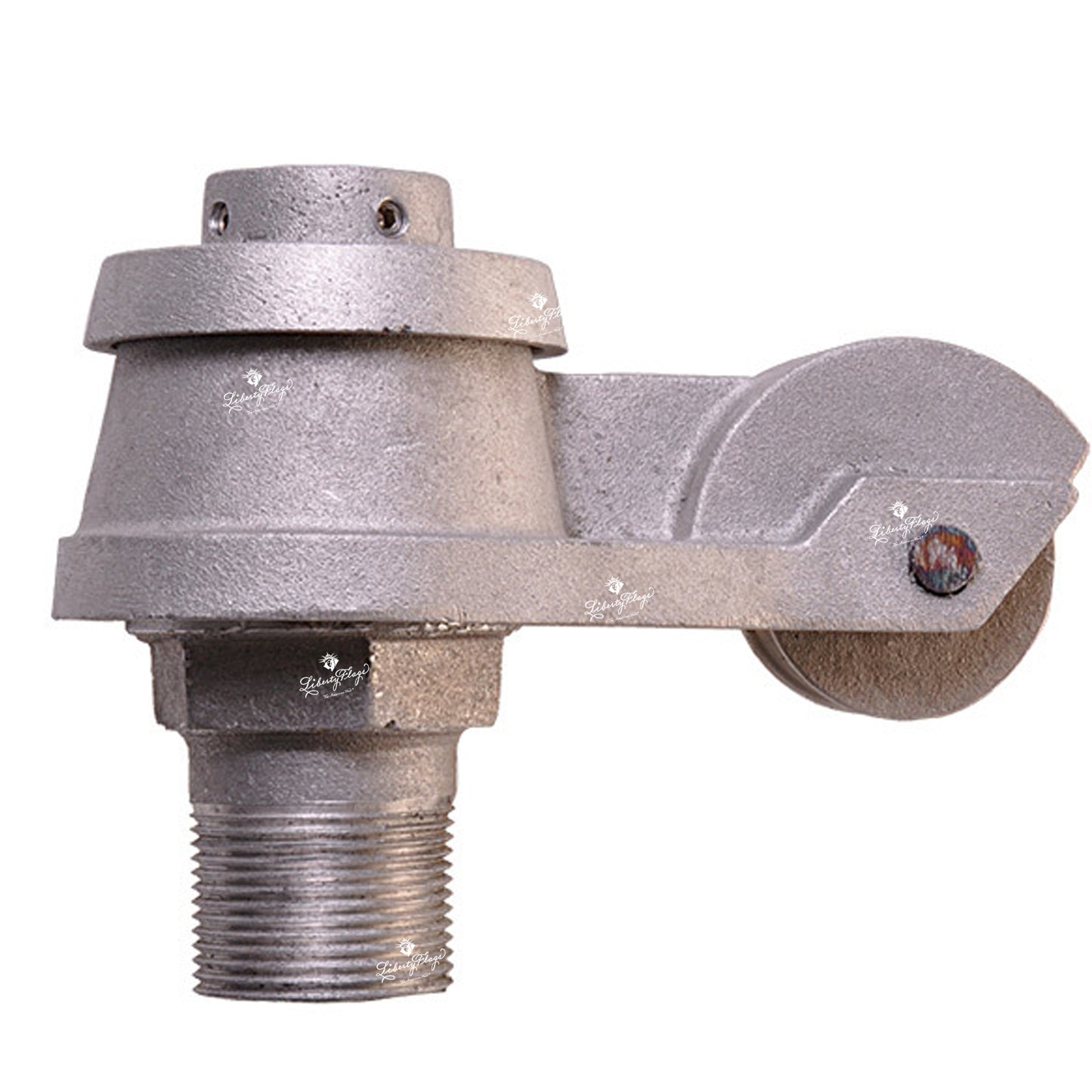

Flagpole Truck - Heavy Duty Spindle Style

The flagpole truck is a component part at the top of the flagpole and serves 3 purposes

1. Houses the pulley through which the halyard (rope) passes through to raise and lower the flags
2. Holds the finial (ornament) at the top of the flagpole
3. Keeps the weather elements out of the flagpole

Features

• External halyard truck
• Cast aluminum
• 2 finishes: silver and bronze
• For use with maximum top shaft OD 4-1/2"
• Upper and lower stainless steel sealed lubricant bearings on cast aluminum spindle
• Threaded 1-1/4" NPT spindle
• Single sheave with cast aluminum pulley wheel on stainless steel axle
• Tapped to receive ornament on 1/2" diameter rod with 1/2"-13NC thread
• Halyard limit: 3/8"

Special Benefits

• Revolving truck moves with the wind enabling the flag to not wrap around the flagpole
• Built with stainless steel sealed lubricant bearings for optimal performance life

This is a component part only and therefore the design and engineering of the application are the responsibility of the customer.
