Skyscape Commercial Flagpole - External Halyard

P2205125S
  • Sale
  • Regular price $1,027.00


Skyscape Commercial Flagpole - External Halyard

Free shipping on this item regardless of order amount.
Free appropriate size U.S. SunTru nylon flag included. Satin finish flagpole ships in 5-7 business days. Anodized finish flagpole ships in 20-25 business days.

Halyard is a naval term referring to the "rigging" or rope by which the flag is raised or lowered

FREE SHIPPING to lower 48 states | View wind speed map

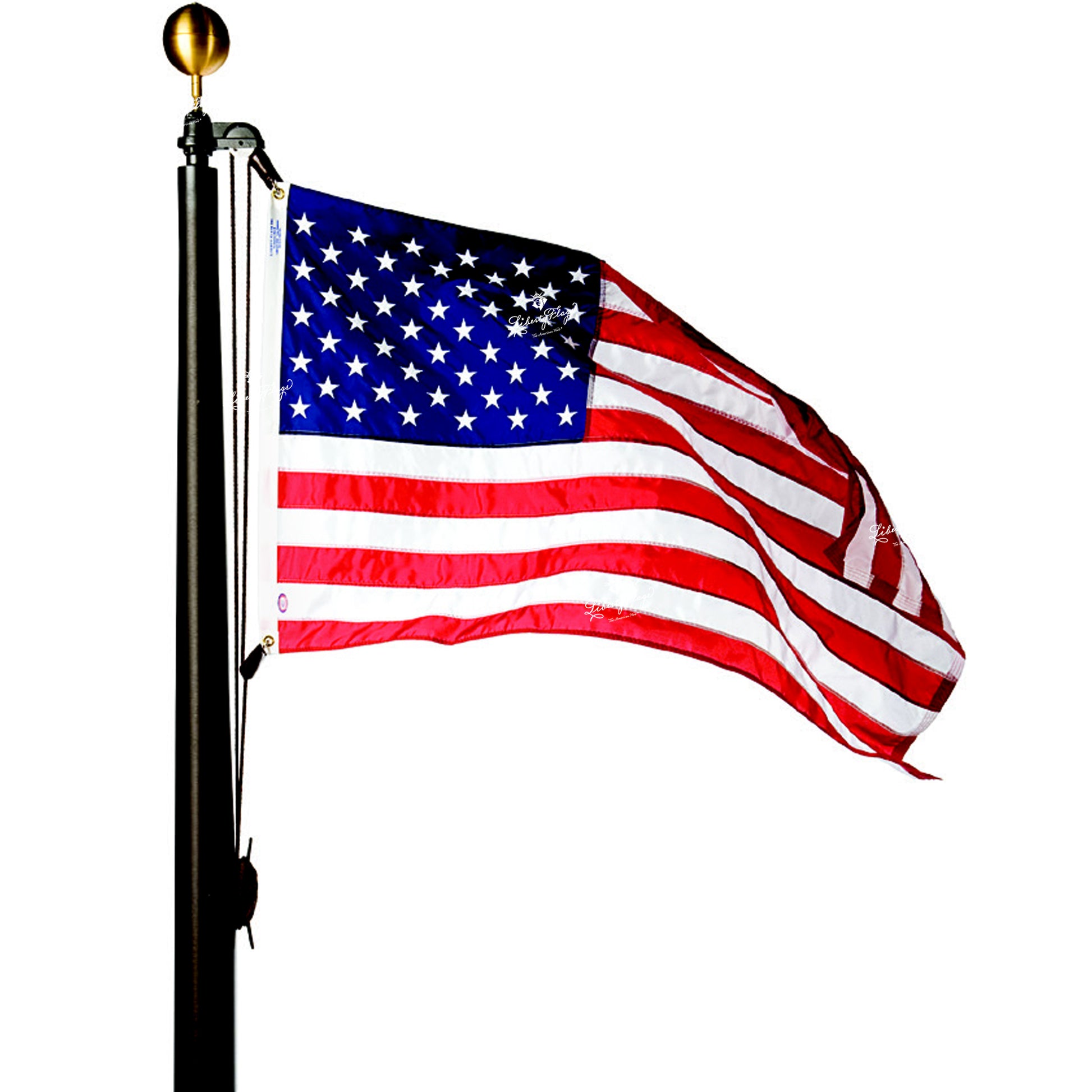

The SKYSCAPE is a commercial, external halyard roped-based flagpole. The pole features gracefully tapered heavy aluminum flagpole shaft with high quality commercial riggings designed specifically for many years of flag display.

  • Preferred for commercial or large estate display
  • Vast selection with models suitable for all U.S. geographic locations
  • Simple in function, excellent quality
  • Finishes suitable for all building architectural styles

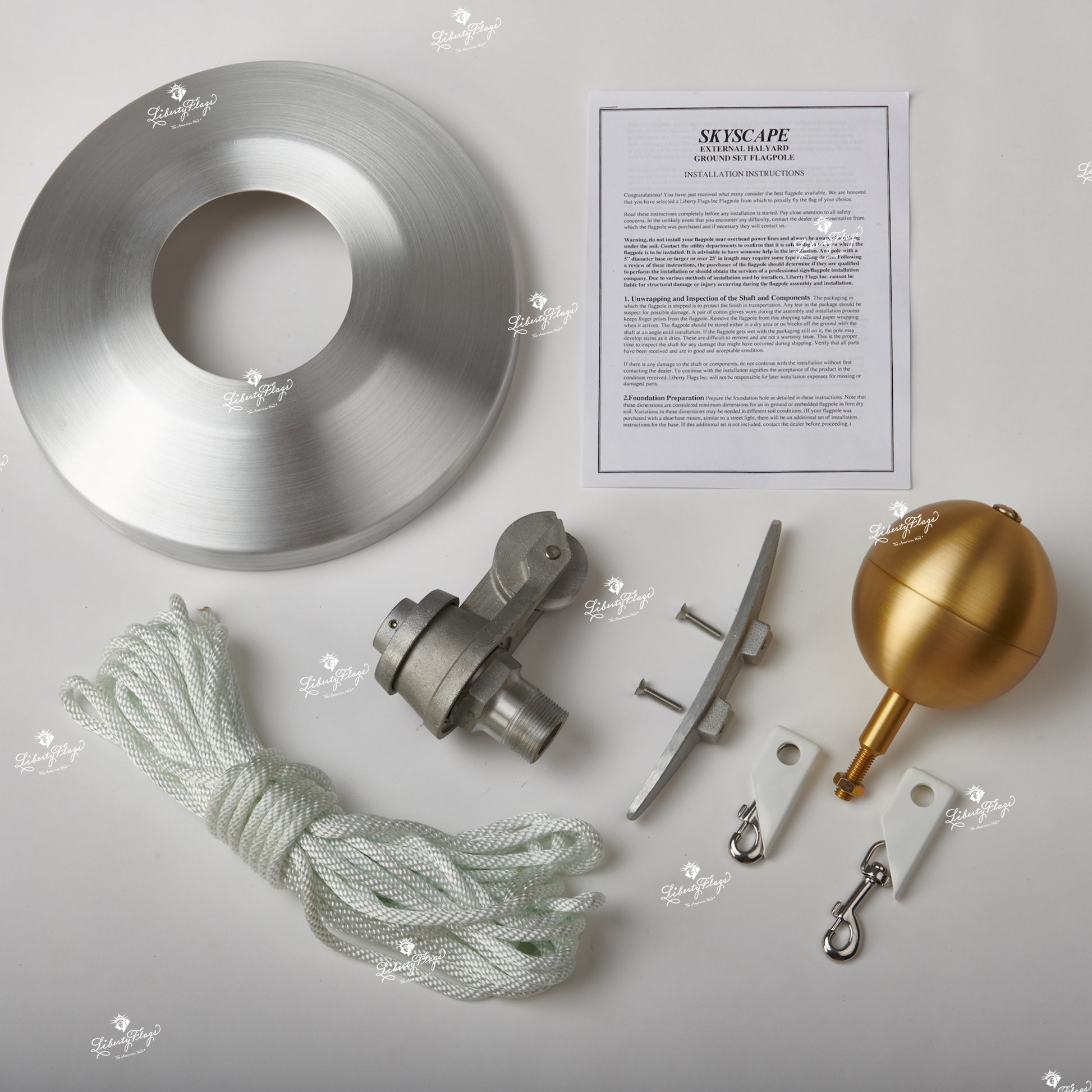

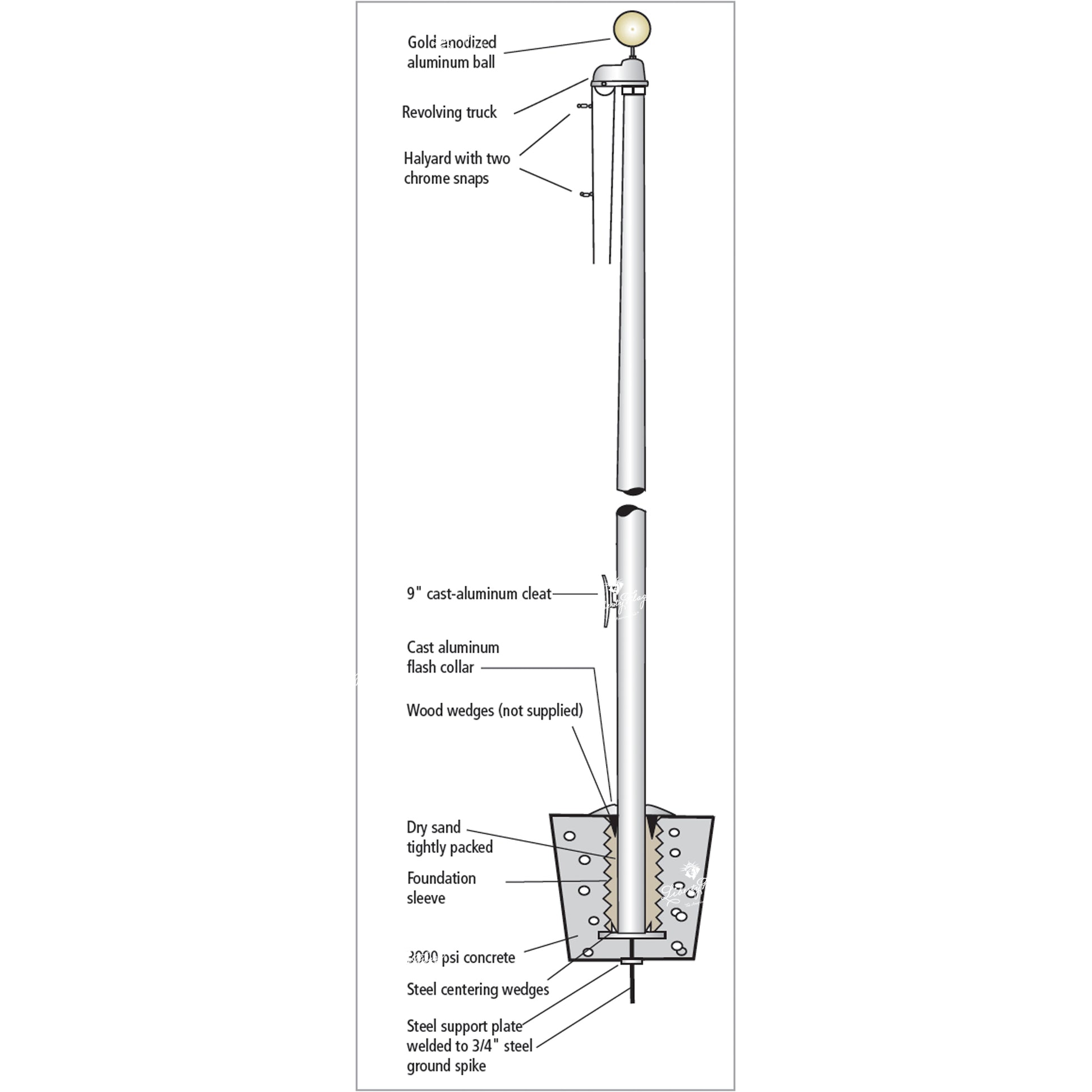

What's included?

  • Gold anodized aluminum ball matched to flagpole diameter
  • Flagpole shaft: 20'-25' 1-shaft section, 30'-45' 2-shaft sections, 50'-70' 3-shaft sections, 80' 4-shaft sections
  • Heavy duty external halyard single sheave revolving sealed bearing truck
  • 9" Cast-aluminum cleat
  • Polypropylene rope: 20'-40' supplied with 5/16" diameter rope, 50' - 80' supplied with 3/8" diameter rope
  • (2) Metal snap hooks
  • (2) Snap hook covers
  • Aluminum flash collar
  • Galvanized corrugated steel ground sleeve with grounding spike

Special Benefits

  • SKYSCAPE flagpole comes with a heavy duty revolving sealed bearing truck. The stainless steel sealed lubricant bearings and aluminum pulley greatly reduces the need for costly repairs.
  • A revolving truck is the component atop of the flagpole which houses the pulley and assists with raising and lowering the flag.  It also revolves and moves with the wind reducing the chance for the flag to wrap around the flagpole.

Finish Options

Satin finish flagpole ships in 5-7 business days.
Anodized finish flagpole ships in 15-20 business days.

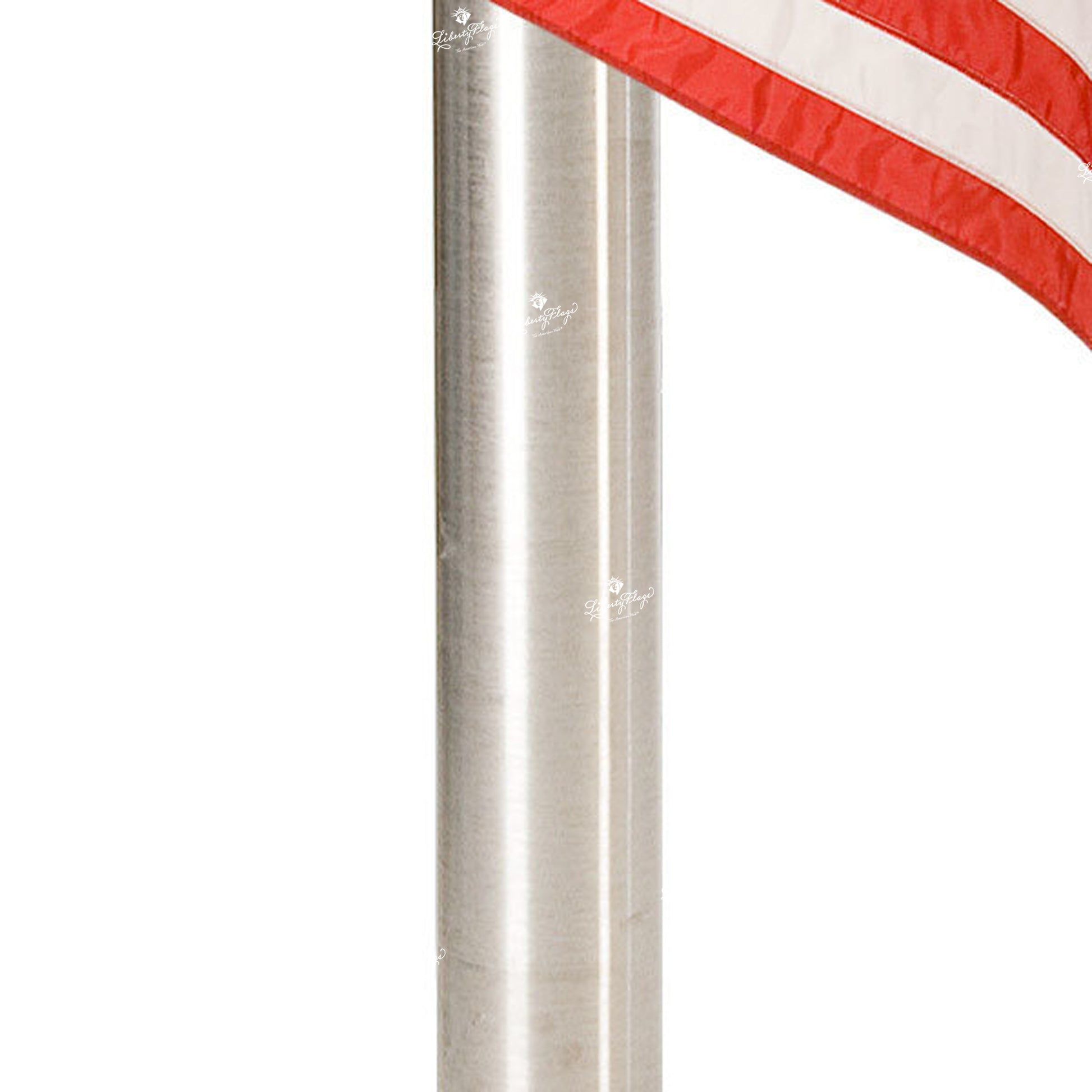

Satin - directional 36-grit sanded satin Deep Luster finish. When new, satin finish catches light reflections casting a strong sheen. The metal will oxidize and turn dull within 2 years. To maintain original appearance, consider upgrading to an anodized finish.

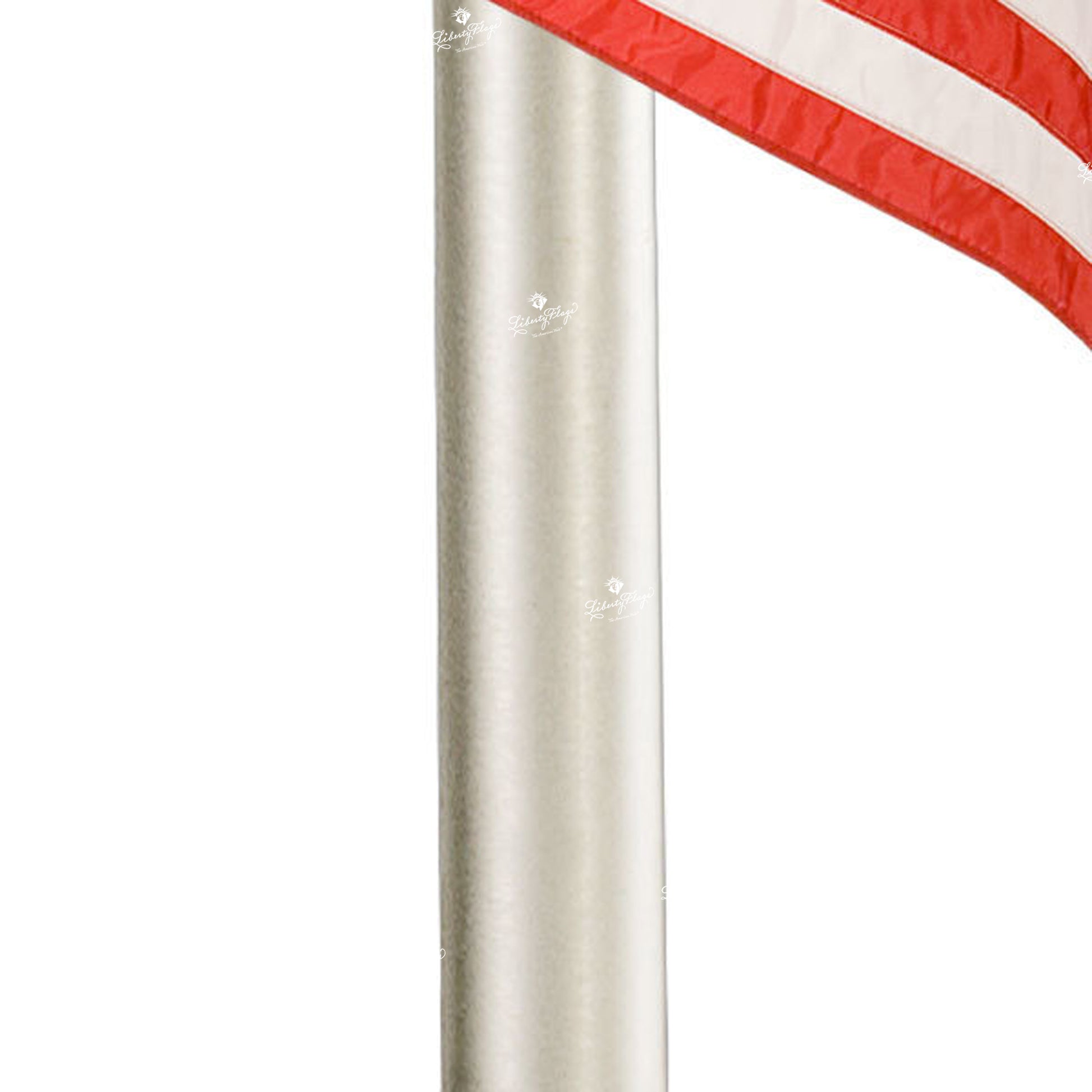

Clear Anodized - an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts.  Anodizing increases corrosion resistance and wear resistance and will maintain the original luster for many years.

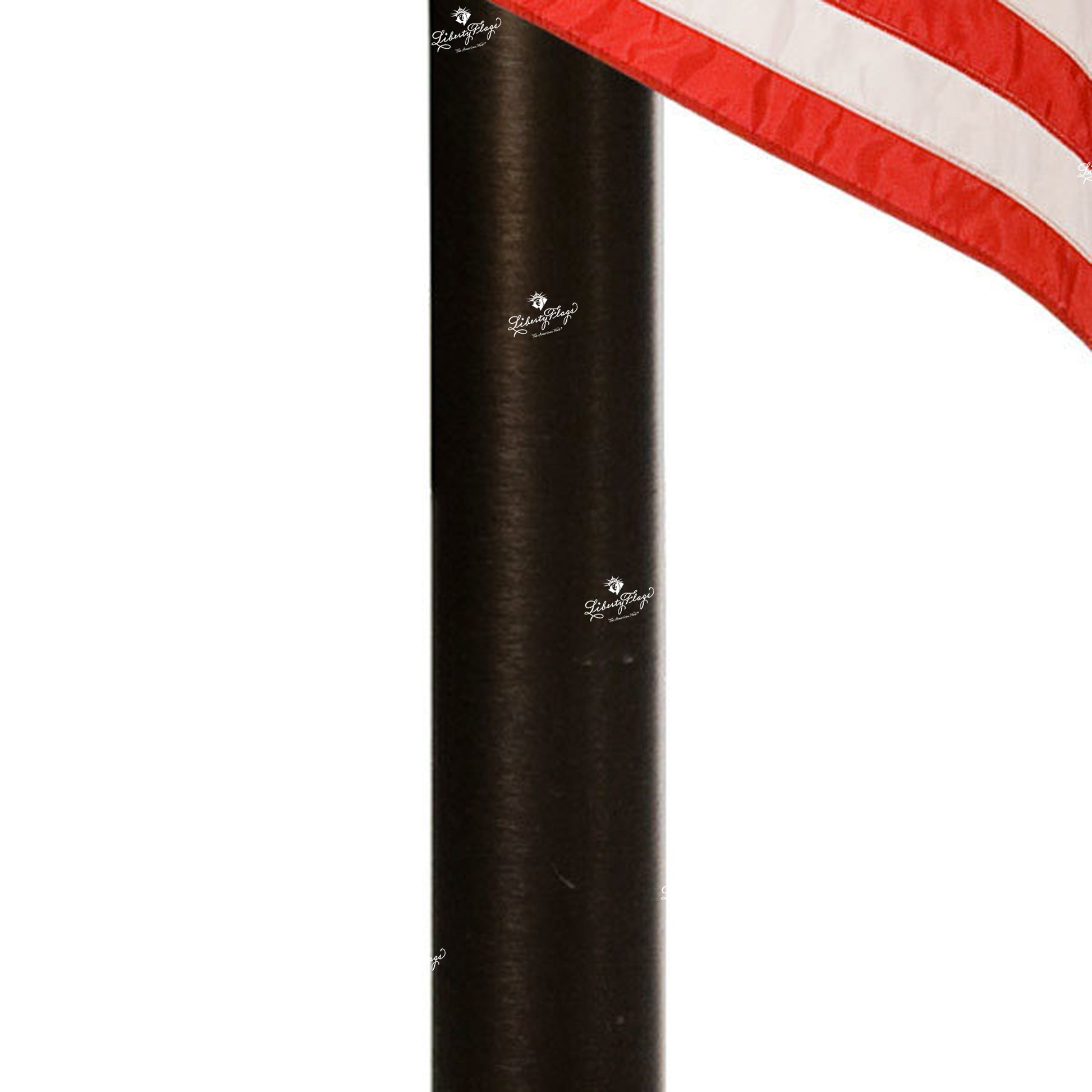

Bronze Anodized (bronze color) - an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts. Anodizing increases corrosion resistance and wear resistance and will maintain the original luster for many years.

What flag size is best?

Flag size is determined by flagpole height. Normally the horizontal length of the flag is 1/4 to 1/3 the height of the flagpole. This guideline applies to commercial manufactured flagpoles 20' and taller. Always follow the manufacturer's flag size guidelines when purchasing a flagpole.

What is wind speed rating and why is it important?

  • Wind speed means the movement of air in an outside environment. Movement can be affected by many factors including geographic location, weather, pressure gradient and jet streams. High winds can cause unpleasant side effects.
  • Select an appropriate strength flagpole for the wind zone area where the flagpole will be displayed.
  • Flag size and wind force are used to determine the load on a flagpole resulting in the flagged and unflagged mile per hour wind speed rating.
  • Display of an oversized flag could cause the flagpole to fail.
  • A flagpole not suitable for the geographic location wind speed often times fail.
  • Wind speeds are generally higher along coastal areas than inland. They are also higher in open country than the center of cities. Wind speed becomes greater as the height above ground increases.
  • The wind speed rating map and wind speed rating charts will help you select a flagpole suited to your location. The wind speed rating map is based on a 50-year period of recurrence at an elevation of 30 feet above ground level.



Height

Model #'s

Wind Speed

Flagged/ Unflagged

Suggested

Flag Size

 20'

P2205125S, P2205125C, P2205125B

136/229

4'x6'

 25'

P2255125S, P2255125C, P2255125B

98/136

4'x6'

 30'

P2306156S, P2306156C, P2306156B

108/174

5'x8'

 35'

P2357156S, P2357156C, P2357156B

110/166

5'x8'

 40'

P2408156S, P2408156C, P2408156B

107/157

6'x10'

 50'

P25010188S, P25010188C, P25010188B

118/164

8'x12'

 60'

P26010250S, P26010250C, P26010250B

104/143

10'x15'

 70'

P27012250S, P27012250C, P27012250B

109/145

12’x18’

 80'

P28012375S, P28012375C, P28012375B

107/144

12'x18'
