Ambassador Commercial Flagpole - External Halyard

P1203125S
  • Sale
  • Regular price $525.00


Ambassador Commercial Flagpole - External Halyard

Free shipping on this item regardless of order amount.
Free appropriate size U.S. SunTru nylon flag included. Due to high demand delivery lead time on this item is presently 5-6 weeks.

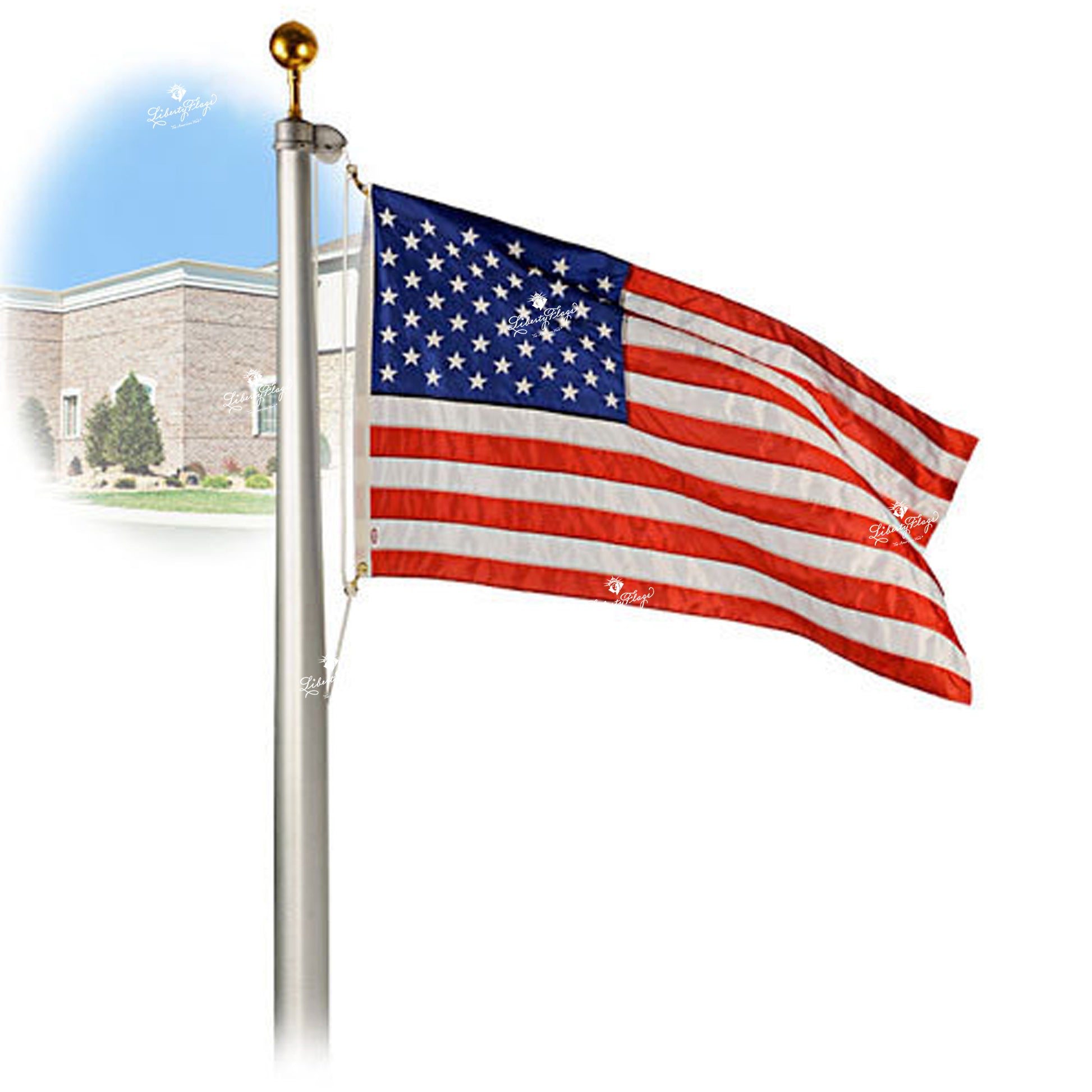

Gracefully tapered aluminum flagpole shaft with commercial quality external rigging designed specifically for many years of flag display.

  • Preferred for residential, small business and apartment complex display
  • Provides substantial strength and budget friendly pricing
  • Simple in function
  • Easily rigged and installed
  • Suitable for most inland U.S. locations
  • Manufactured with the same shaft materials and high standards as our larger commercial flagpoles

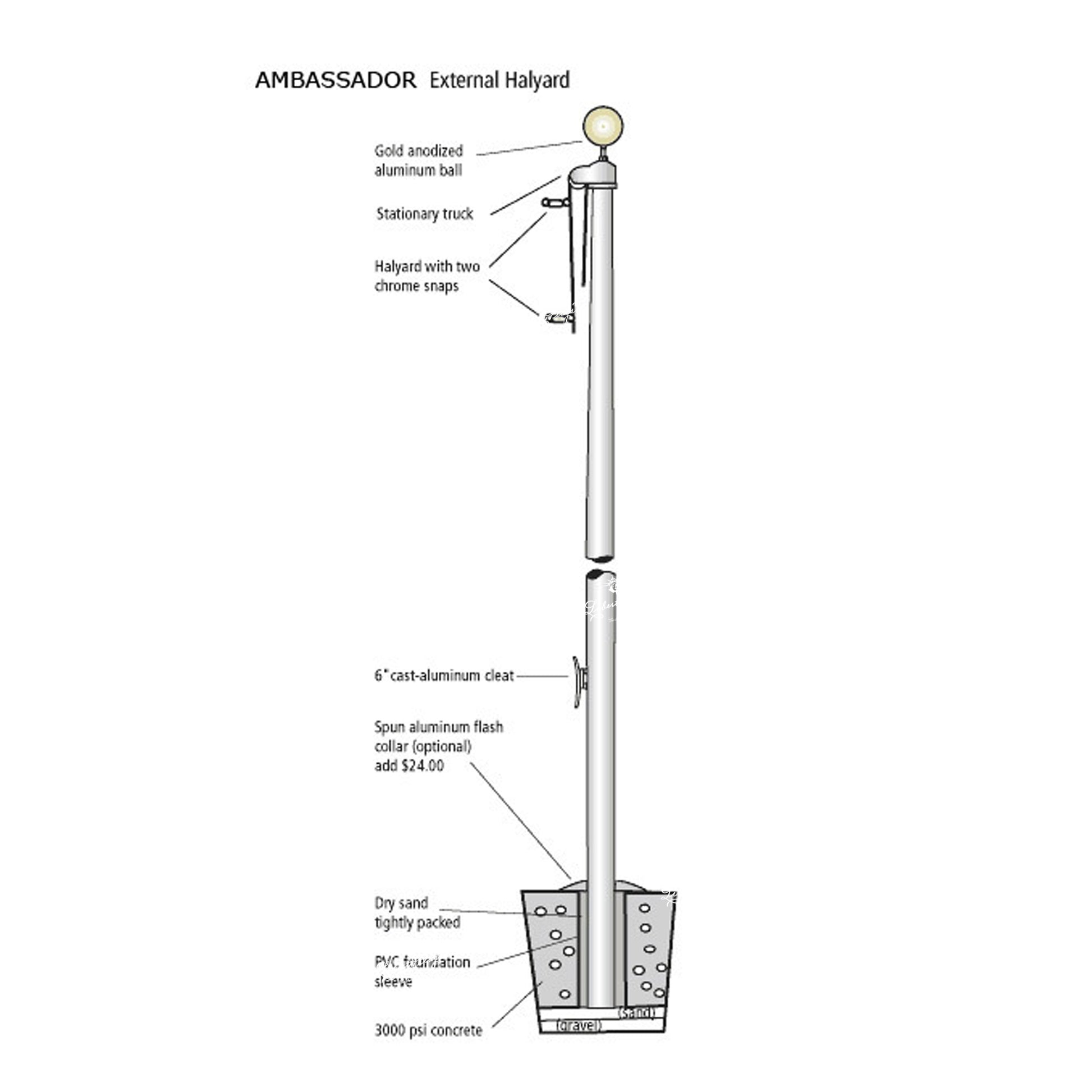

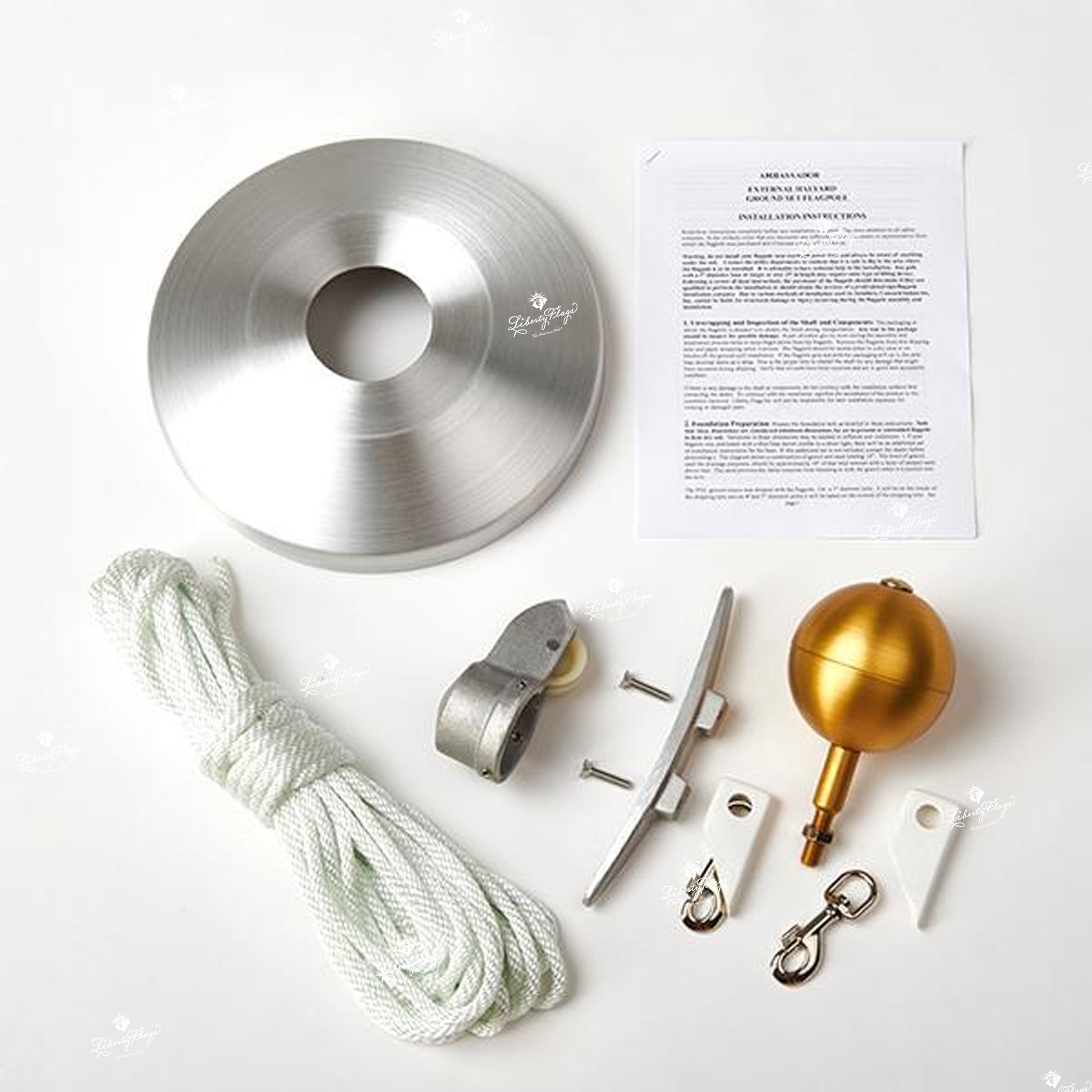

What's included?

  • Gold anodized aluminum ball
  • Flagpole shaft - 20' - 25' 1-shaft section, 30' 2-shaft sections
  • Cast-aluminum stationary truck with aluminum pulley
  • 9" Cast-aluminum cleat
  • 5/16" Polypropylene rope
  • (2) Metal snap hooks
  • (2) Snap Covers
  • PVC ground foundation sleeve
  • Aluminum flash collar
  • Installation instructions

Finish Options

Satin finish flagpole ships in 5-7 business days.
Anodized finish flagpole ships in 15-20 business days.

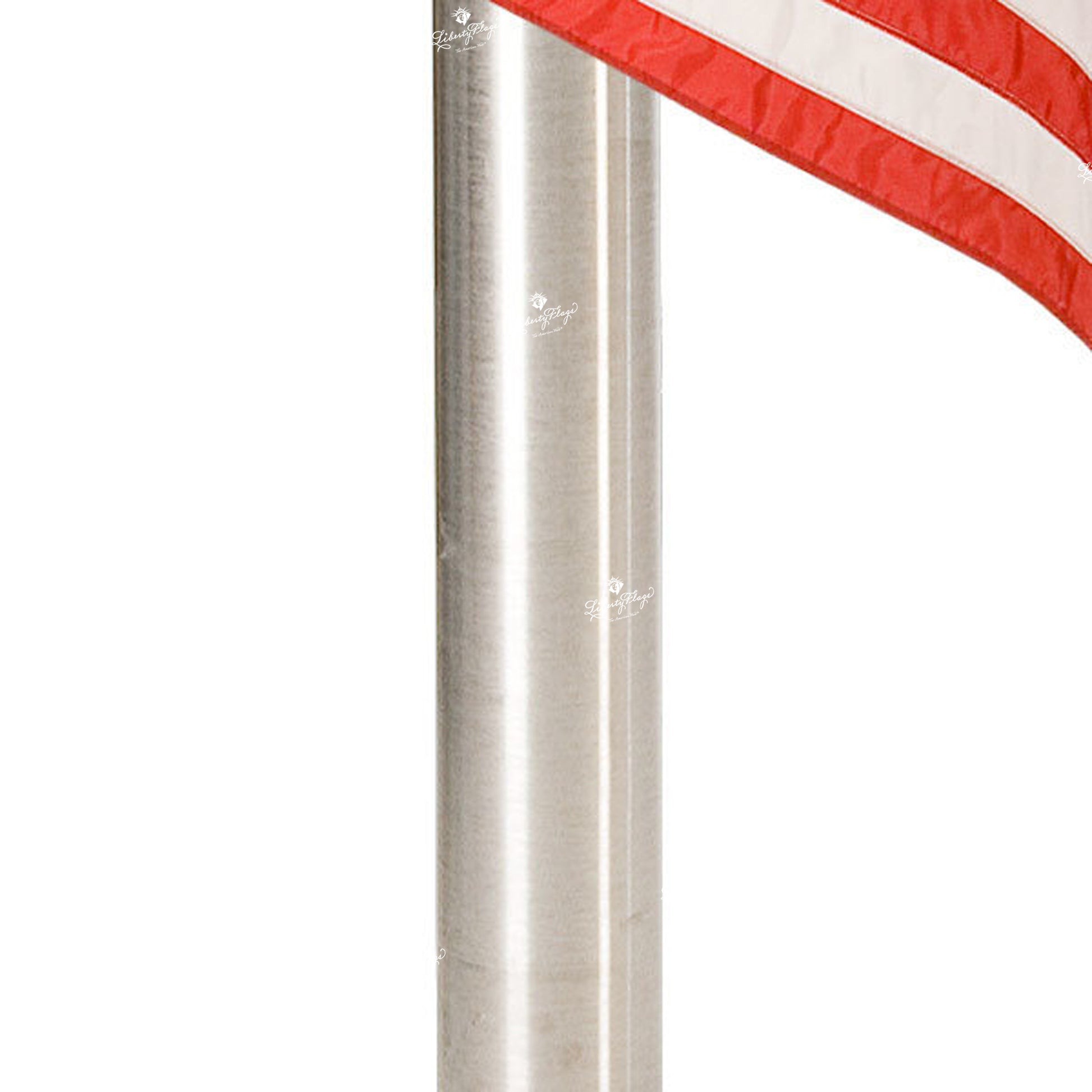

Satin - directional 36-grit sanded satin Deep Luster finish.  When new, satin finish catches light reflections casting a strong sheen. The metal will oxidize and turn dull within two years. To retain the original appearance consider upgrading to an anodized finish.

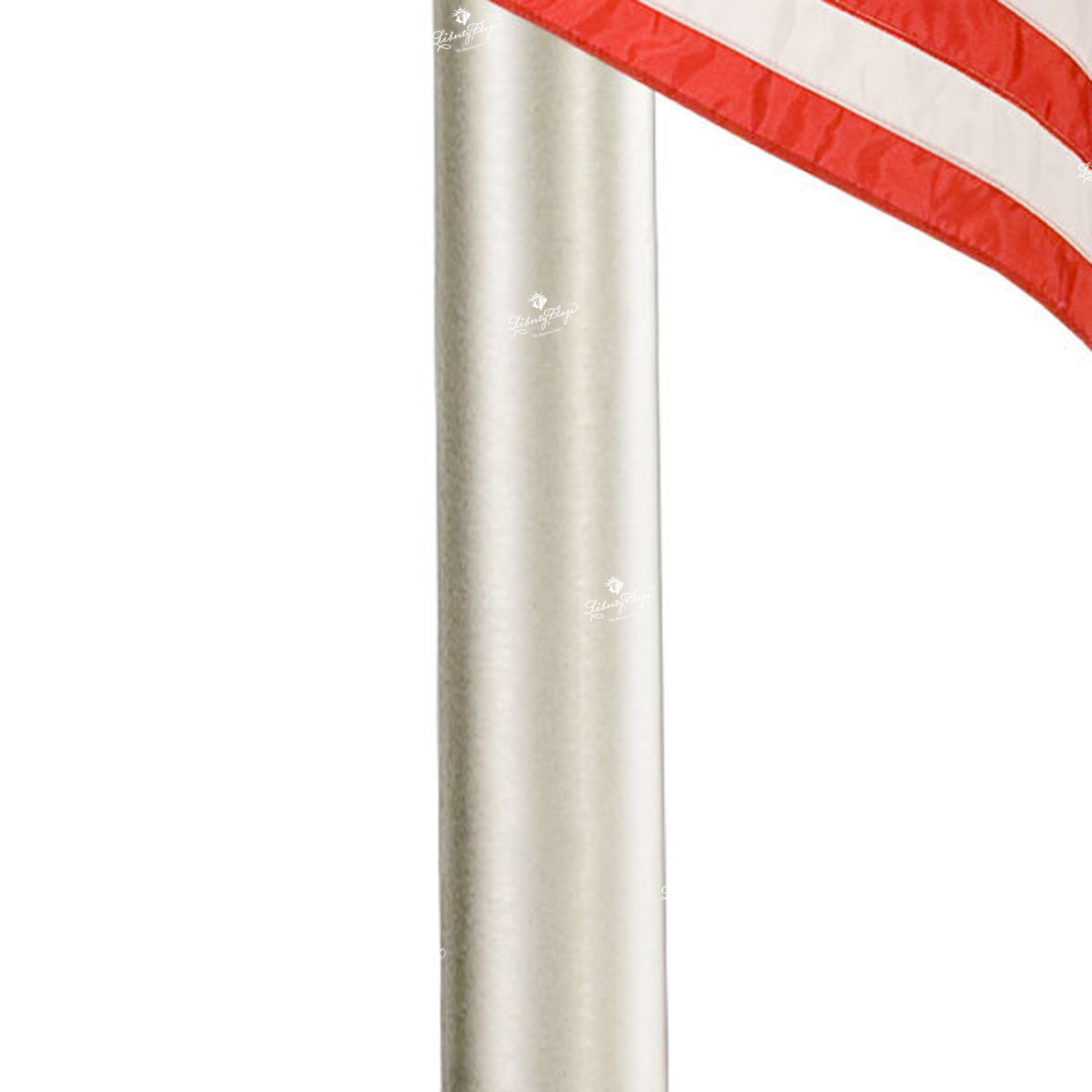

Clear Anodized - an electrolytic passivization process used to increase the thickness of the natural oxide layer on the surface of metal parts.  Anodizing increases corrosion resistance and wear resistance and will maintain the original luster for many years.

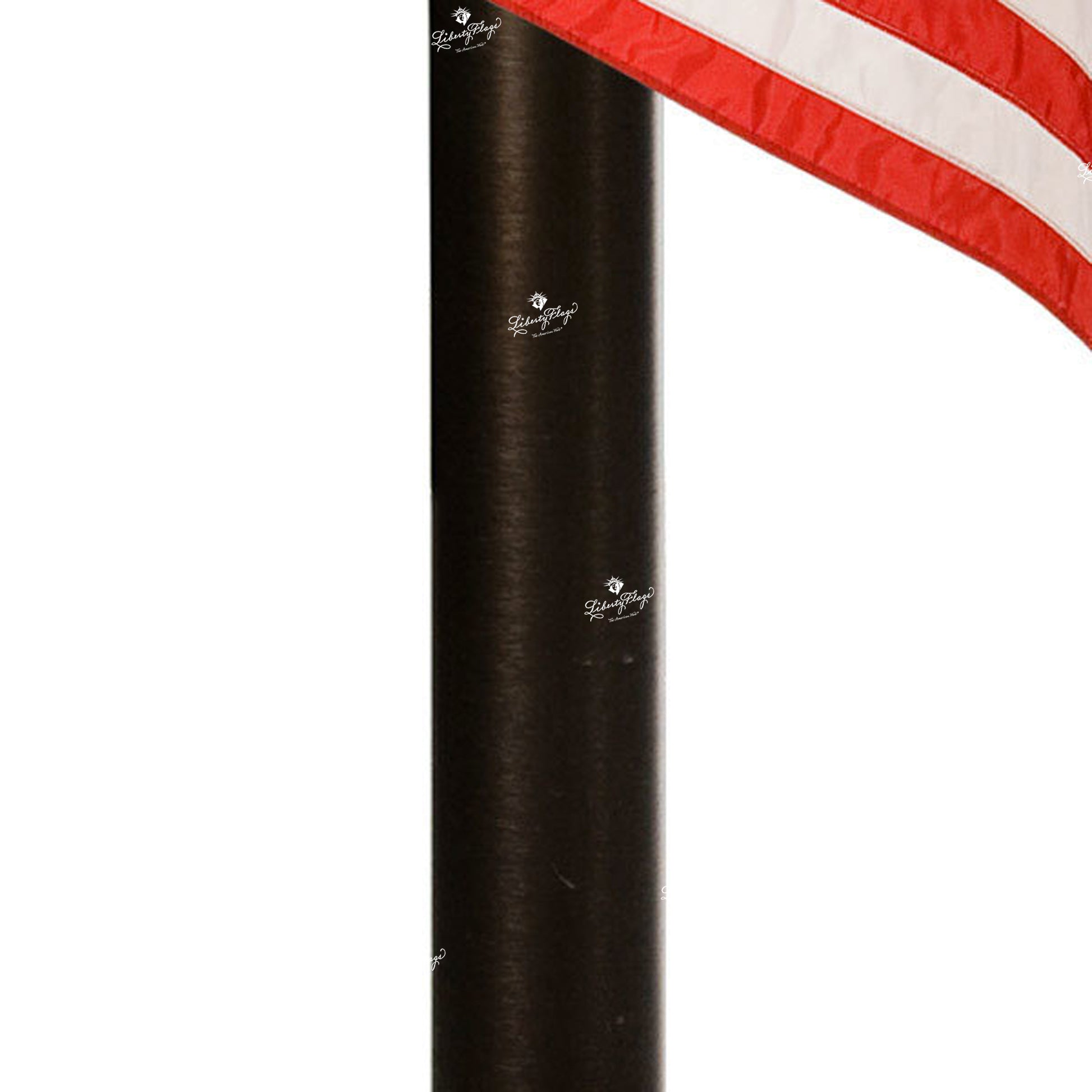

Bronze Anodized (bronze color) - an electrolytic passivization process used to increase the thickness of the natural oxide layer on the surface of metal parts. Anodizing increases corrosion resistance and wear resistance and will maintain the original luster for many years.

What flag size is best?

Flag size is determined by flagpole height.  Normally the horizontal length of the flag is 1/4 to 1/3 the height of the flagpole. This guideline applies to commercial manufactured flagpoles 20' and taller. Always follow the manufacturer's flag size guidelines when purchasing a flagpole.

What is wind speed rating and why is it important?

  • Wind speed means the movement of air in an outside environment.  Movement can be affected by many factors including geographic location, weather, pressure gradient and jet streams.  High winds can cause unpleasant side effect.
  • Select an appropriate strength flagpole for the wind zone area where the flagpole will be displayed.
  • Flag size and wind force are used to determine the load on a flagpole resulting in the flagged and unflagged mile per hour wind speed rating.
  • Display of an oversized flag could cause the flagpole to fail.
  • A flagpole not suitable for the geographic location wind speed often times fail.
  • Wind speeds are generally higher along coastal areas than inland. They are also higher in open country than the center of cities.  Wind speed becomes greater as the height above ground increases.
  • Wind speed rating map and wind speed rating charts will help you select a flagpole suited to your location.The wind speed rating map is based on a 50-year period of recurrence at an elevation of 30 feet above ground level.
  • View Wind Speed Rating Map



Height Model #’s Wind Speed
Flagged/Unflagged
Suggested
Flag Size

 20’  P1203125S, P1203125C, P1203125B  83/108 mph  4’x6’
 20’  P1204125S, P1204125C, P1204125B  109/147 mph  4’x6’
 20’  P1205125S, P1205125C, P1205125B  136/229 mph  4’x6’
 25’  P1255125S, P1255125C, P1255125B  98/136 mph  4’x6’
 25’  P1255156S, P1255156C, P1255156B  111/178 mph  4’x6’
 25’  P1255188S, P1255188C, P1255188B  124/209 mph  4’x6’

 30'  P1305188S, P1305188C, P1305188B  94/131 mph  5'x8'
